Product Description

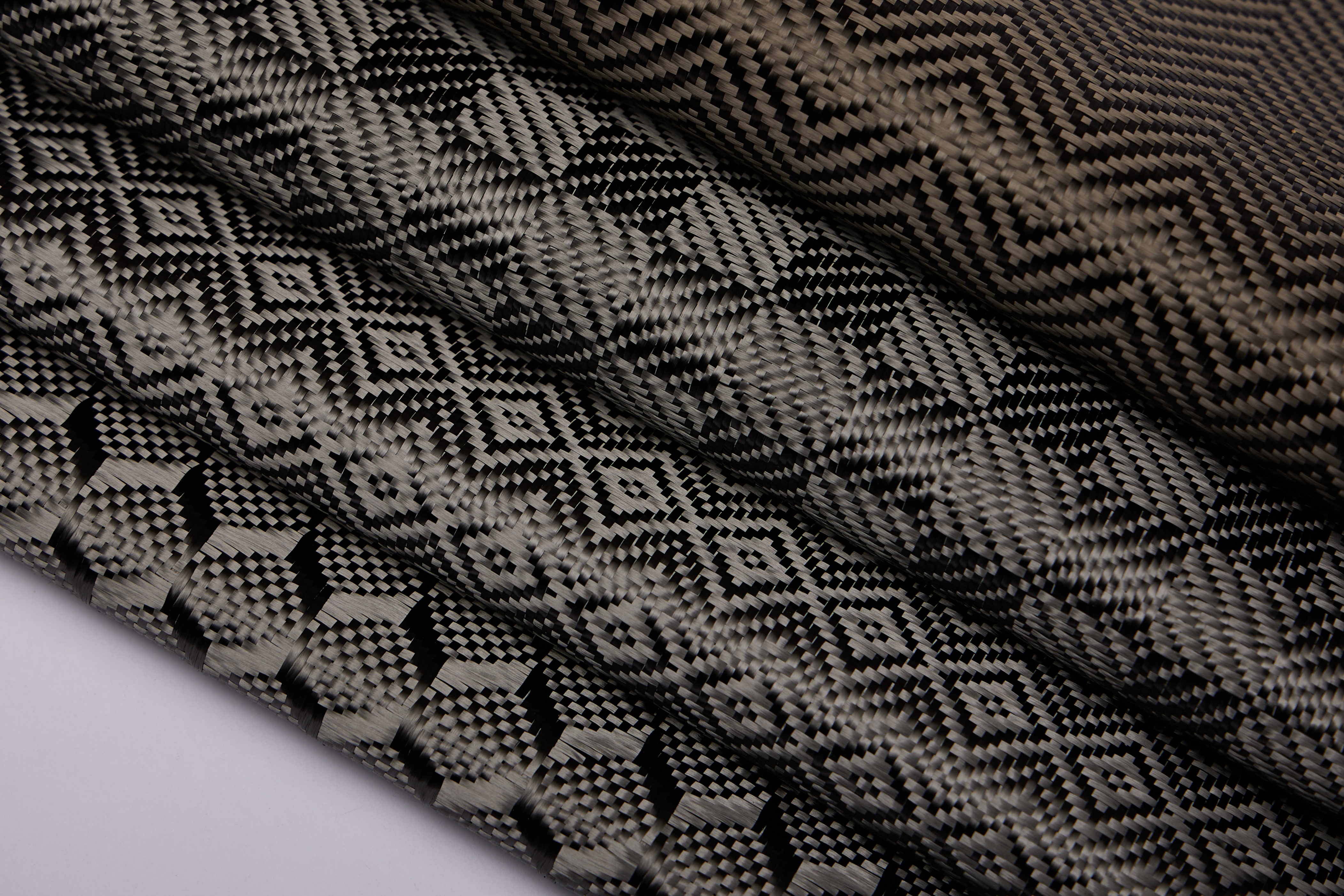

>>Through special looms and programming, carbon fiber filaments are interwoven into various patterns and designs during the warp and weft weaving process, such as honeycomb patterns, wheat ear patterns, airplane patterns, and diamond patterns. It exhibits lightweight and high strength, with a strength far exceeding that of ordinary fabrics, while remaining very light in weight; it also possesses good abrasion resistance, chemical corrosion resistance, high temperature resistance, and fatigue resistance.
Mechanical properties of carbon fiber jacquard fabric
Specifications (Weight) | Tensile Strength (MPa) | Young's Modulus(GPa) | Elongation at Break(%) | Thickness(MM) |
240gsm | ≥4000 | 210~230 | 1.5~1.7 | 0.20~0.22 |
250gsm | ≥4000 | 210~230 | 1.5~1.7 | 0.22~0.25 |
280gsm | ≥4000 | 210~230 | 1.5~1.7 | 0.25~0.30 |
High modulus 300gsm | 2800~3500 | 350~450 | 0.7~1 | 0.28~0.32 |

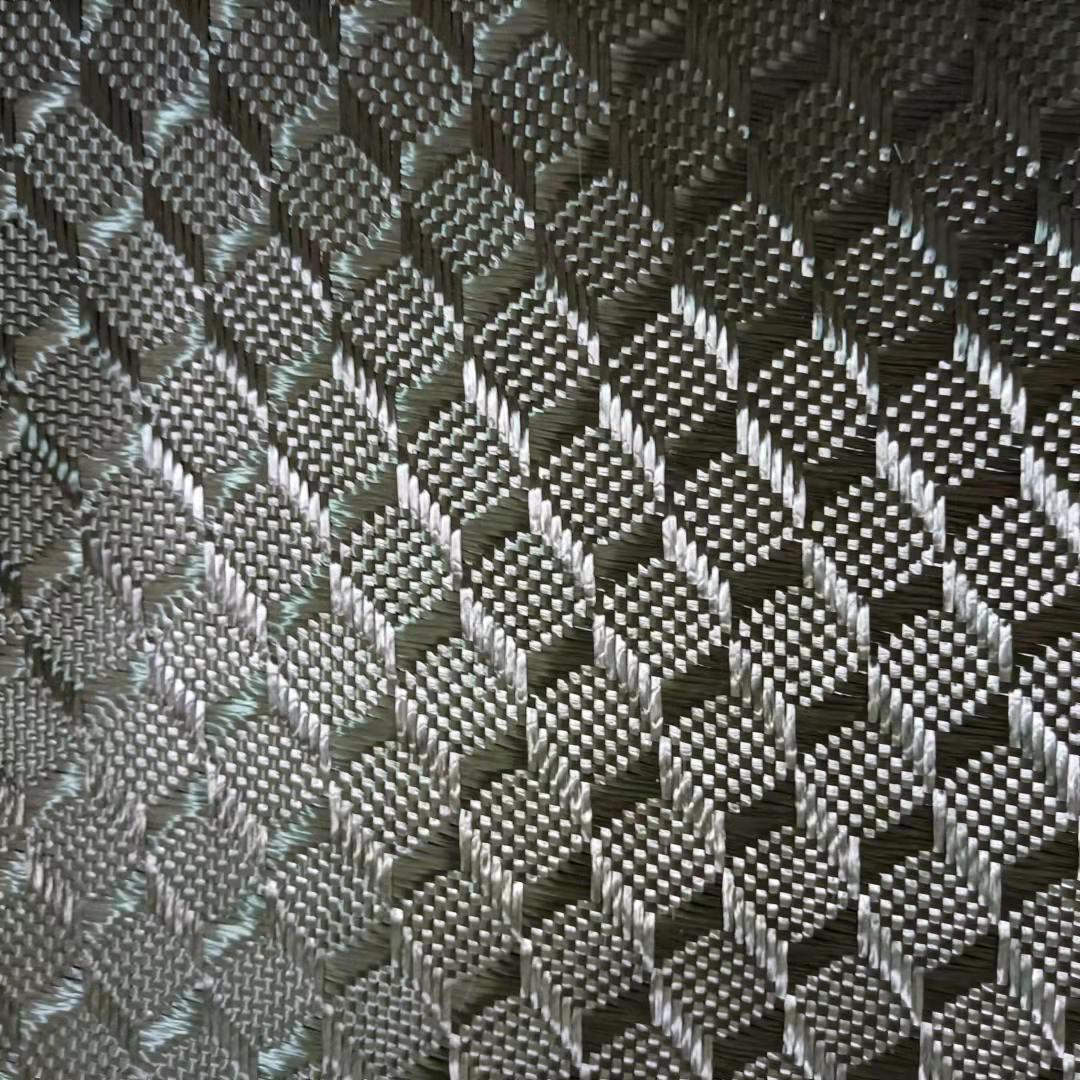

Engineered with multi-dimensional woven structures for enhanced structural rigidity and a distinctive layered visual effect, ideal for high-end decorative and load-bearing industrial applications.

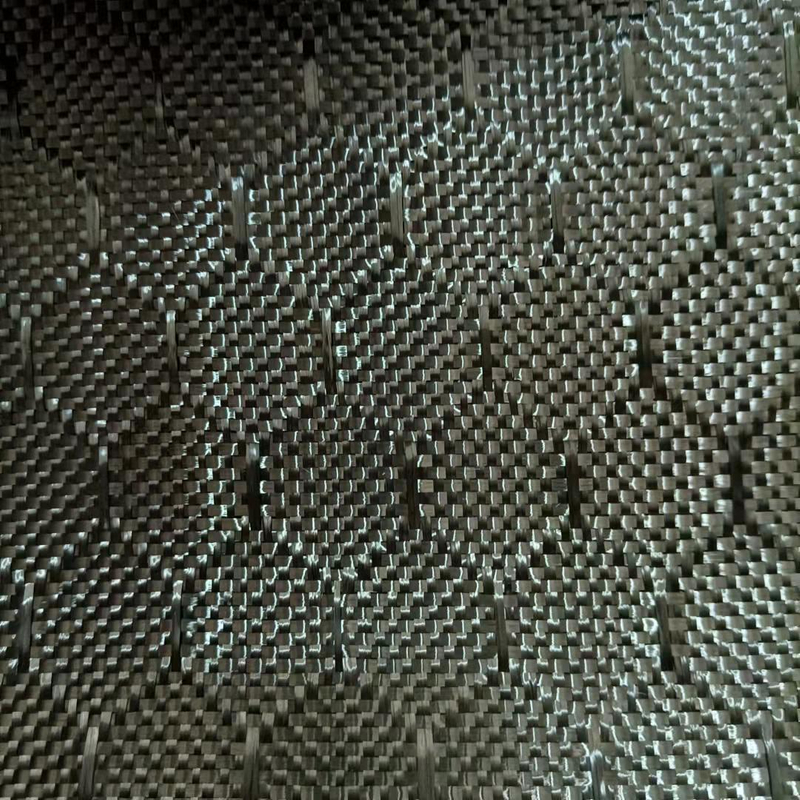

Delivers uniform structural support across the fabric surface, with a stable hexagonal weave that optimizes load distribution, making it the top choice for aerospace and wind energy structural components.

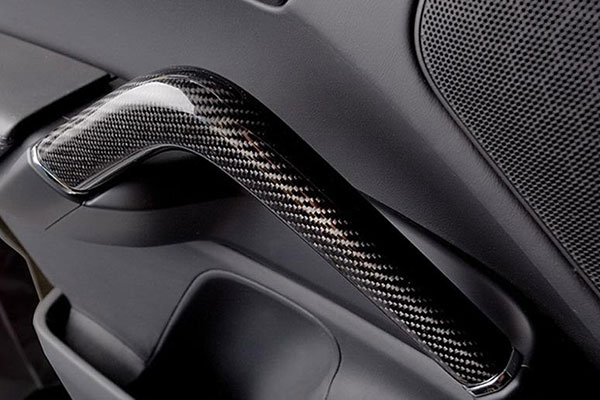

Features a bold, high-visibility twill pattern with excellent drapability and layup performance, widely used in automotive exterior and interior components, and high-end modified vehicle kits.
With a classic diamond weave pattern, it balances consistent tensile strength across warp and weft directions, paired with a premium, timeless aesthetic for luxury goods and sporting equipment.

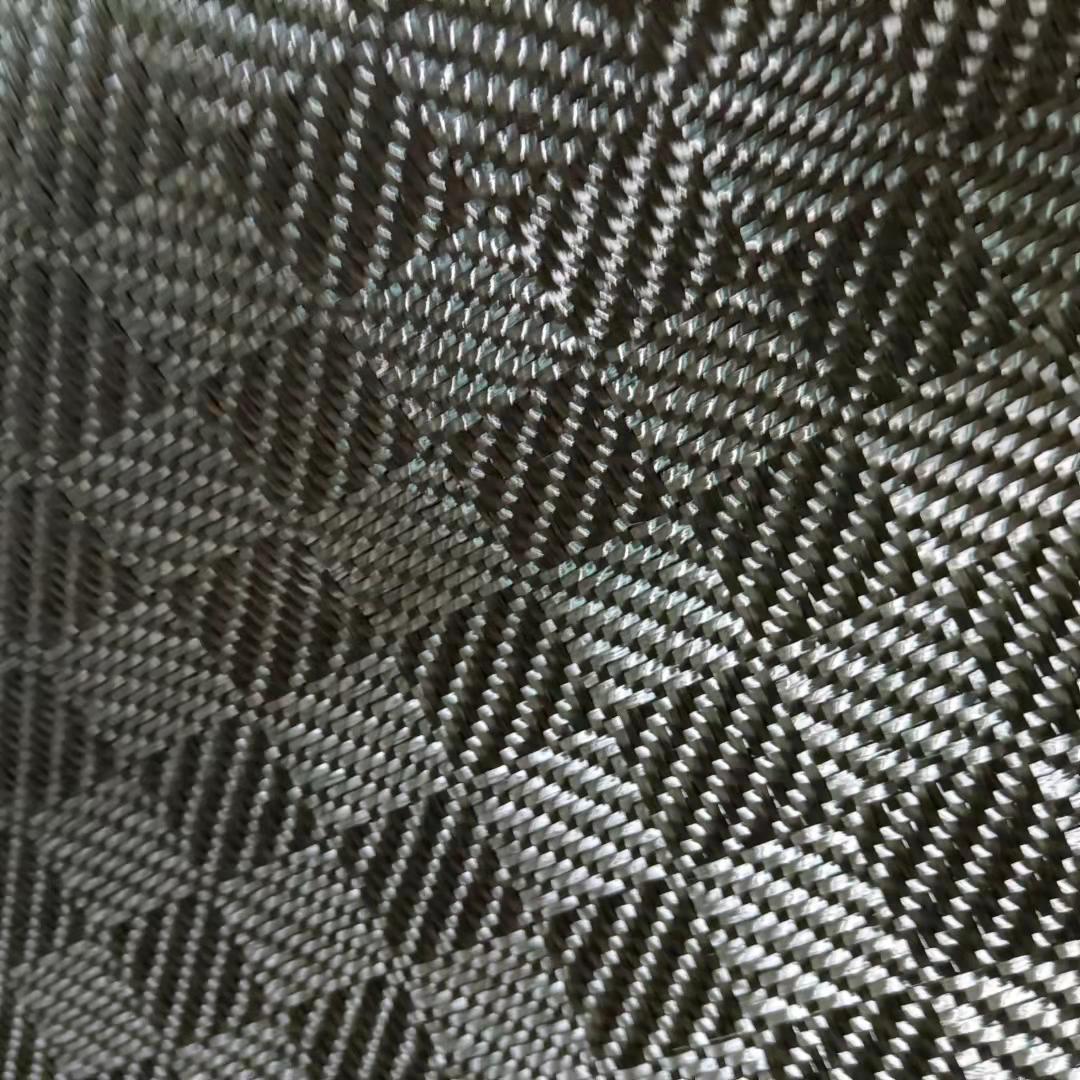

Offers a high-contrast, geometric checkerboard pattern with uniform structural performance, perfect for decorative structural parts in consumer electronics, luxury packaging, and lifestyle products.
Custom woven camouflage patterns retain the full mechanical performance of carbon fiber, while delivering a unique visual finish for outdoor equipment, drone frames, and specialty automotive applications.
We support end-to-end custom jacquard design, including brand logos, specialized geometric patterns, and industry-specific textures, exclusively for bulk production and OEM manufacturing orders.
Feature: With an inherently low carbon fiber density, our jacquard fabric maintains a lightweight profile for easy processing and installation, while delivering exceptional high-modulus performance. Standard variants offer a tensile strength of ≥4000MPa, far exceeding the load-bearing capacity of conventional industrial fabrics, with no deformation under sustained high tension.
Business Benefit: Reduces overall component weight without compromising structural integrity, cutting energy consumption for aerospace and new energy automotive applications, boosting payload capacity for unmanned aerial systems, and enhancing handling performance for high-end sporting equipment. This material fully complies with strict international industry standards for load-bearing structural parts, reducing your product certification and testing costs.
Feature: This carbon fiber jacquard fabric exhibits outstanding abrasion resistance to withstand friction and wear in daily industrial use. It is also fully resistant to corrosion from acids, alkalis, salts, and other harsh chemicals, maintaining stable mechanical and physical performance even in extreme working environments.
Business Benefit: Extends the service life of your end products, reducing maintenance and replacement costs for equipment used in marine, construction, and outdoor industrial settings. Its chemical stability eliminates the need for additional protective coatings, streamlining your production process and lowering manufacturing overhead.
Feature: Our carbon fiber jacquard fabric maintains exceptional structural stability in high-temperature environments, with no easy deformation, melting, or decomposition. It also delivers superior creep resistance, retaining its shape and performance under long-term continuous stress.
Business Benefit: Ensures consistent performance for high-temperature applications in aerospace, electronics, and industrial equipment manufacturing, reducing the risk of product failure and costly product recalls. Its long-term structural stability supports extended product warranties, strengthening your competitive edge in the market.
Feature: Through advanced jacquard weaving technology, we create a wide range of intricate, consistent patterns on the fabric surface – from honeycomb and diamond weaves to custom brand designs – delivering a unique, premium visual effect and decorative functionality.
Business Benefit: Allows you to differentiate your end products in high-end consumer, automotive interior, and luxury goods markets, combining structural performance with a distinctive, tech-forward aesthetic. This eliminates the need for secondary decorative treatments, simplifying your production workflow.
Feature: This carbon fiber jacquard fabric offers excellent flexibility, with the ability to conform to complex curved surfaces, irregular shapes, and a wide range of structural substrates. It is easy to cut, lay up, and install in various manufacturing processes.
Business Benefit: Reduces processing complexity and material waste during production, making it suitable for components with intricate geometries in aerospace, automotive, and construction reinforcement applications. Its ease of use cuts down on production time and labor costs for your manufacturing operations.
Feature: Carbon fiber inherently offers reliable electrical conductivity and X-ray permeability, properties that are fully retained in our jacquard fabric, alongside its core structural performance.
Business Benefit: Enables use in specialized industrial applications, including EMI shielding for electronic equipment, X-ray transparent components for medical devices, and static dissipation for precision instruments. This multi-functionality allows you to use a single material for multiple performance requirements, simplifying your supply chain.
In-House Manufacturing & Full Quality Control: We operate our own advanced production facilities with specialized jacquard looms and precision programming teams, with full control over every step of the production process. No middlemen, ensuring factory-direct pricing and consistent batch-to-batch quality for bulk orders.
Rigorous Quality Assurance: Every production batch undergoes full testing of mechanical properties and dimensional specifications, with full compliance with international industrial standards. We provide complete material test reports with every order, simplifying your product certification and quality management processes.
Full Customization & OEM Support: We offer end-to-end OEM and ODM services, from custom pattern design and material formulation to tailored specifications for your unique application. Our dedicated technical engineering team provides full support for material selection and product development.
Flexible Order Capacity & Global Delivery: We support low-volume sample orders for material testing and prototyping, alongside stable large-scale production capacity for bulk manufacturing orders. We offer reliable global delivery with full support for export documentation, customs clearance, and logistics coordination.
Dedicated Client Support: Our specialized industrial client service team provides responsive, expert support throughout the entire partnership, from initial inquiry and sample evaluation to after-sales technical support, ensuring a seamless experience for your business.
Product Features
Carbon fiber jacquard fabric has excellent wear resistance, resisting friction wear during daily use. At the same time, it is also resistant to corrosion from chemicals such as acids, alkalis, and salts, maintaining stable performance even in harsh chemical environments.
Carbon fiber jacquard fabric has good flexibility and can be flexibly applied to components of various complex shapes. It can conform to different curved surfaces and shapes, is easy to install, and is suitable for a variety of structural substrates.
Carbon fiber has properties such as conductivity and X-ray permeability, which enables carbon fiber jacquard fabric to also possess these functions, making it applicable to some special fields that require conductivity or X-ray permeability.
Application Areas
